Description
The world’s most reliable small animal anesthesia ventilator.
- Compact design suitable for medical facilities
- Includes Mallard’s 2400V ventilator
- Higher inspiratory flow rates for larger animals – Up to 400 lbs
- Oxygen flush function with safety restrictor ensures patient safety during emergencies

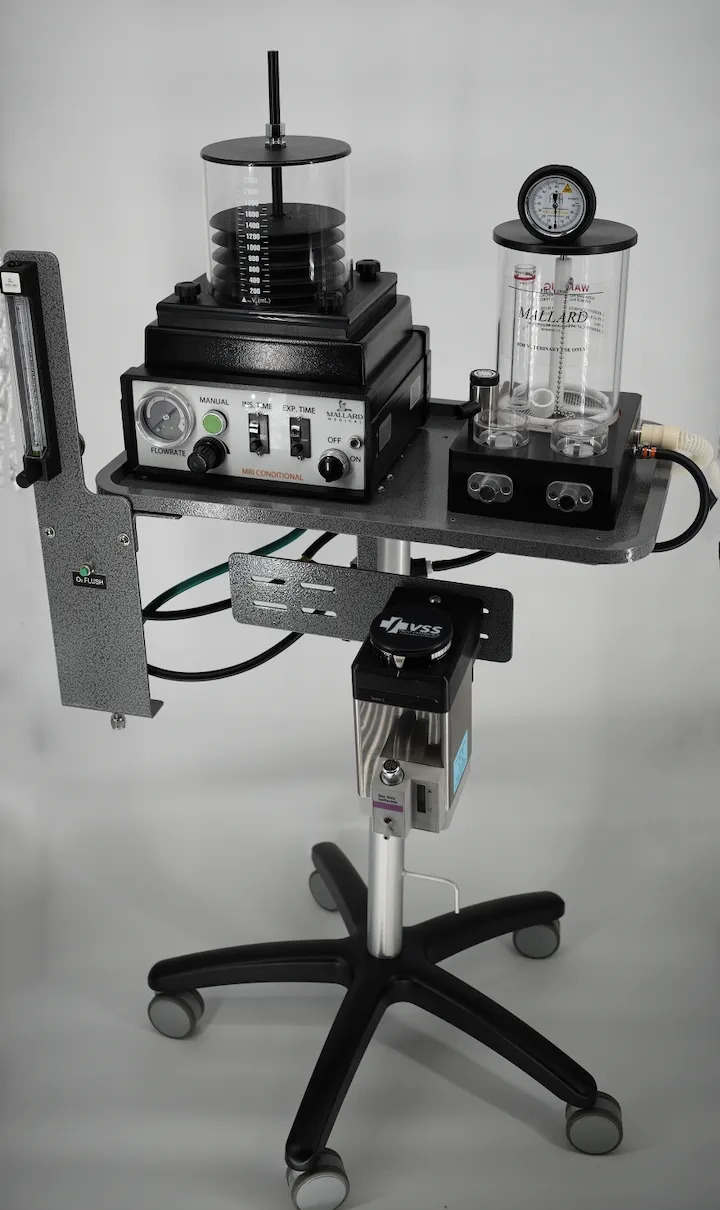

- Cart-based design allows for easy portability
- All-in-one solution that covers all your small animal anesthesia and ventilation needs
- Essential for extended surgeries or patients with compromised lung
- Optional M.R.I. conditional (No electric, purely pneumatic / air powered)
Technical Specifications
Classification
A microprocessor based, electronic, time cycled, pressure limited, anesthesia ventilator (MRI Upon Request)
Bellows Orientation
Inverted (Ascending)
Volume
Selectable – 200 – 2,200ml
Includes: Pediatric Bellows Optional 50 – 300ml
Optional: Expanded Bellows – 200 – 3,000ml
Controls
- Inspiratory Time – .1 to .3 seconds
- Inspiratory Flow – 1 – 120 LPM
- Inspiratory Pressure Rate – 10 – 80cm H20
- Rate – 2 – 80 BPM
- Pneumatic Manual Push
- Button for Inspiration
LED Display
- Inspiratory Time Indicator
- Rate (BPM)
- I:E Ratio
Alarms and Alerts
- Failure to Cycle – Visual Audible Alarm
- Low Gas Pressure Failure – Visual Audible Alarm
- Power Failure – Visual Audible Alarm
Safety System
Overpressure Governor 80cm H20 (adjustable)
Gas Scavenger
19mm port
Absorber Volume For Soda Lime
2.5 Liter, Quick Change For Animals Up To 400 lbs (181 kg)
Size & Weight
- 30” Width x 30” Depth x 41-61” Height (76 cm width) x (76 cm depth) x (114-155 cm height)
- 50 lbs (23 kg)
Options
- Available in MRI Conditional Model
