Description

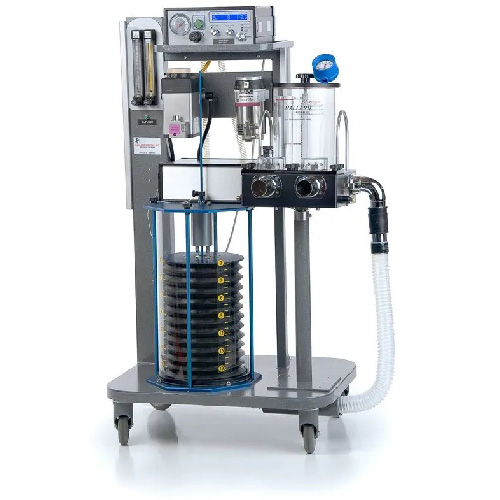

Model 2800C Large Animal Anesthesia Ventilation System
The world’s most reliable large animal ventilator.
- Microprocessor based ventilator for ease of use and superior performance
- Large, easy to read LCD display of respiratory values
- Ascending bellows (18 liters) reduces the patient’s work of breathing
- Quietest ventilator on the market
- Option Pediatric Bellows Assembly (Model 28PBA)
- No disassembly required for cleaning
- Built to last, custom designed frame protects all critical components
- GCX mounting rail for additional shelves or monitors
- Optional M.R.I. conditional (No electric, purely pneumatic / air powered)
- Quick change soda lime canister
Technical Specifications
Classification
A microprocessor based, electronic, time cycled, pressure limited, anesthesia ventilator
Bellows Orientation
Inverted (Ascending)
Volume
18 Liter Bellows for Large Animals with Large Animal Absorber Circuit
Controls
- Inspiratory Time – .1 to 3 seconds
- Inspiratory Flow – 10 – 200 LPM
- Inspiratory Pressure Rate – 10 – 70cm H20
- Pneumatic Manual Push Button for Inspiration
LED Display
- Inspiratory Time Indicator
- Rate (BPM)
- I:E Ratio
Alarms and Alerts
- Failure to Cycle – Visual Audible Alarm
- Low Gas Pressure Failure – Visual Audible Alarm
- Power Failure – Visual Audible Alarm
Safety System
Overpressure Governor 80cm H20 (adjustable)
Gas Scavenger
19mm port
Absorber Volume For Soda Lime
6 Liter, Quick Change for Large Animals
Size & Weight
37” (94cm) Width x 28” (71 cm) Depth x 57” (145cm) Height. Weight 130lbs. 59Kg
Note: Depth and Width Sizes above account for outboard hoses and fittings. The footprint of the base of the cart is 30” (76cm) Width x 24” (61cm) Depth
Options
- Medical Air Option: (Optional 0-10 L/M Air Flow Meter and plumbing to mix medical air with default oxygen anesthesia gas.)
- Optional Vaporizer and Mounts
- Available in MRI Conditional Model
